High Quality Common Rail Control Valve Set Assembly F00RJ01533 for Diesel Injector 0445120063

Product Details:

  • Place of Origin: CHINA
  • Brand Name: CU
  • Certification: ISO9001
  • Model Number: F00RJ01533
  • Condition: New
  • Payment & Shipping Terms:

  • Minimum Order Quantity: 6 Piece
  • Packaging Details: Neutral Packing
  • Delivery Time: 3-5 work days
  • Payment Terms: T/T, L/C, Paypal
  • Supply Ability: 10000
  • Product Detail

    Product Tags

    products detail

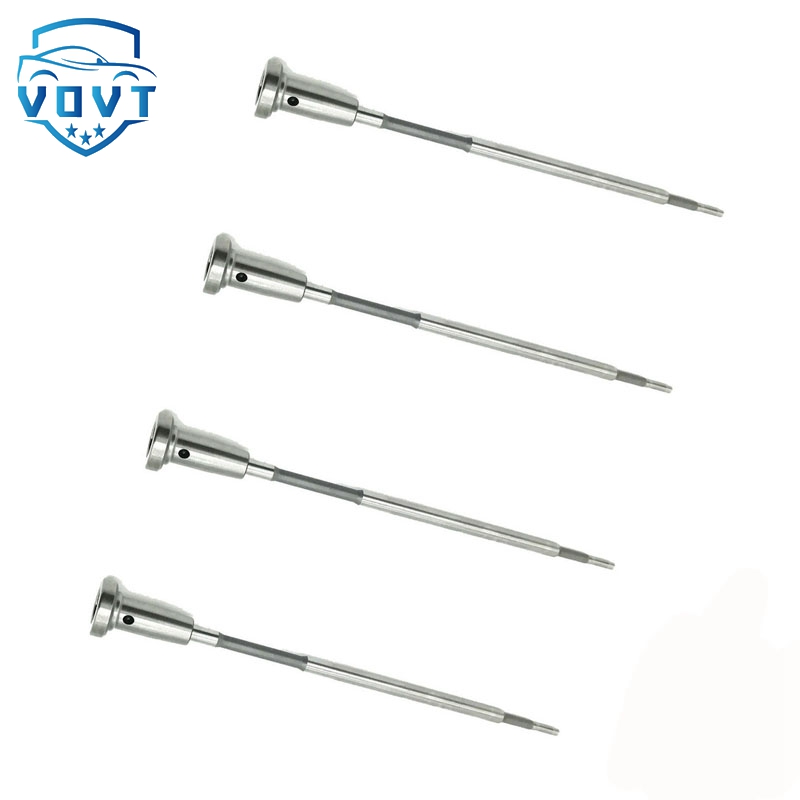

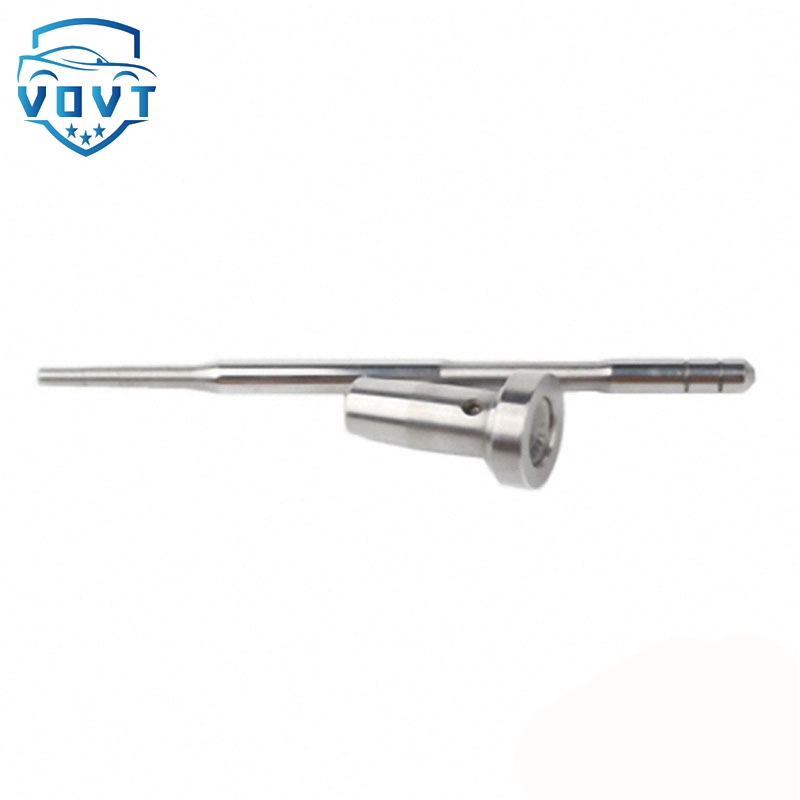

    F00VC01323 (4) F00VC01333 (1) F00VC01333 (3)F00VC01367 (6)

    Produce Name F00RJ01533
    Engine Model /
    Application /
    MOQ 6 pcs / Negotiated
    Packaging White Box Packaging or Customer's Requirement
    Lead time 7-15 working days after confirm order
    Payment T/T, PAYPAL, as your preference

    Injector needle valve assembly inspection method
    (1) Neck tightness test. Use mixed oil or 20# light diesel oil, and use the decompression method to carry out on a special test bench. During the test, use a hand pump to raise the pressure to 23~24 MPa and measure the time for the pressure to drop from 20 MPa to 18 MPa. The test results and standard products For comparison, it should be between the required ranges. 2) Seat sealing test. Use 20# light diesel oil on a test bench with a pressure accumulator, first adjust the fuel injection pressure to the specified pressure of 12.5 MPa, and then increase the oil pressure by 0.1 MPa every 3~5s evenly until the fuel injection starts. , to observe the sealing quality, a small amount of oil leakage is allowed, and the diameter of the oil leakage is not more than 5mm (the seat surface does not grind each other) or the diameter is 3mm (the seat surface grinds each other). But not in a convex spherical shape.
    (3) Spray test. Use 20# light diesel oil on the test bench, adjust the fuel injection pressure to 12.5 MPa, and conduct the spray test with 40~80 times of injection per minute. The spray quality should meet the following requirements: D. The sprayed fuel should be atomized. There should be no splashing oil particles and local unevenness of thickness that can be seen by naked eyes. 2. The start and end of injection should be obvious and the sound should be crisp. 3 Before the injection starts and after the injection ends, no oil leakage is allowed at the injection hole, but moisture is allowed.
    (4) Spray angle check. Check with the naked eye, compare the spray angle under the fuel injection pressure used on the diesel engine with the sample, and the deviation between the center line of the spray angle of the fuel injector and the center line of the fuel injector is not greater than 4°30. The spray cone angle is observed within 100mm.
    (5) Sliding test. Carefully clean and lubricate the parts with well-filtered light diesel oil. When the needle valve is at 45° to the horizontal position, pull the needle valve out of the needle valve body by 1/3 of its length, turn it to any position and let it go. The weight itself slides freely without hindrance.
